*Purchase & custom installation options by inquiry only. Webstore will indicate products are sold out, but all displayed products are available.

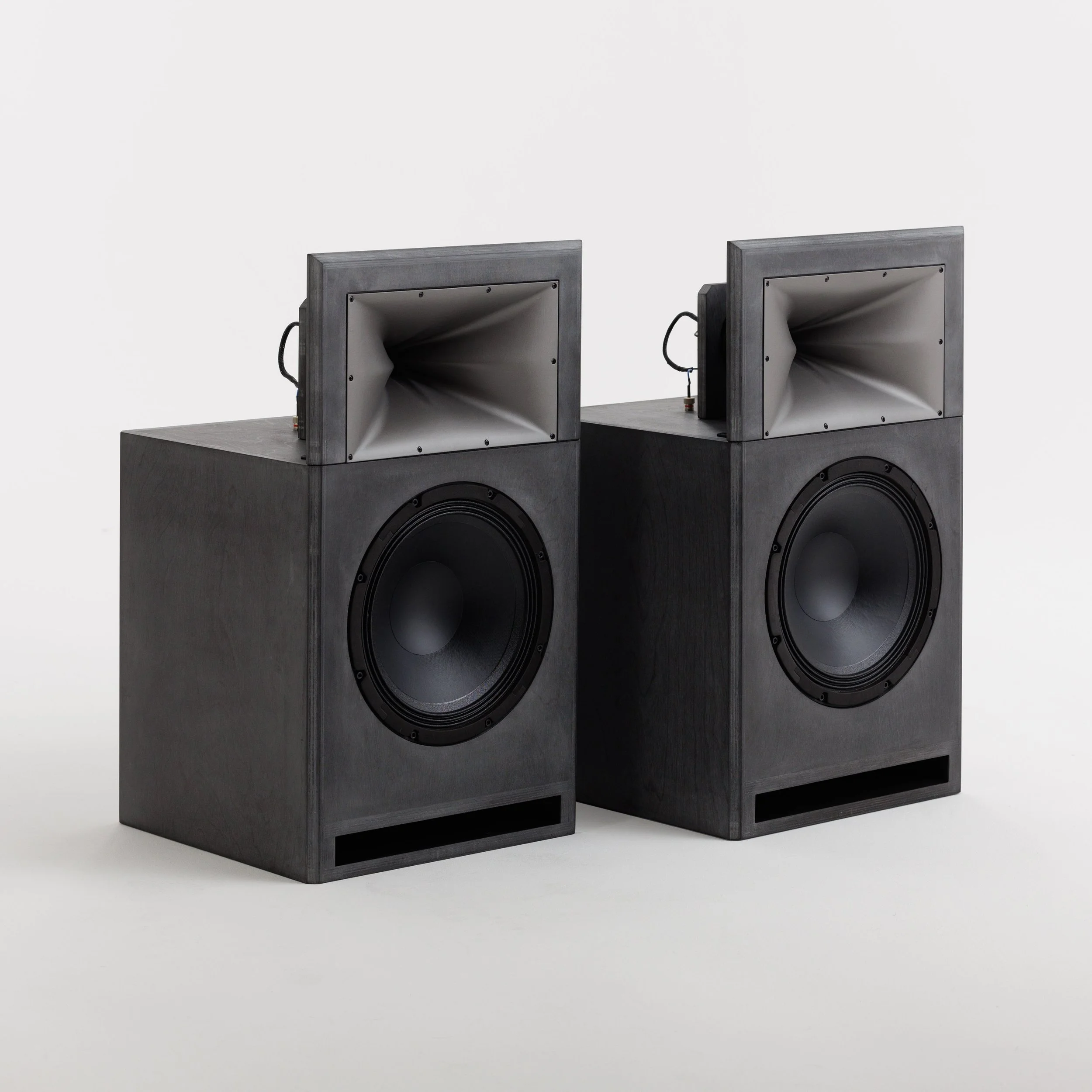

PHYSM BMF12/ Black Moon Full Range 12” self-powered PA loudspeaker.
Pictured in Rubio Monocoat jet black precolor with 2C silver metallic oil.
Optimized for hi-fi PA applications (small to medium room), home theater, full-range studio monitoring, bar/restaurant, home listening etc.
Precision tuned enclosure is constructed of the highest grade 3/4” multiply baltic birch with double thickness front/top baffles & internal bracing.

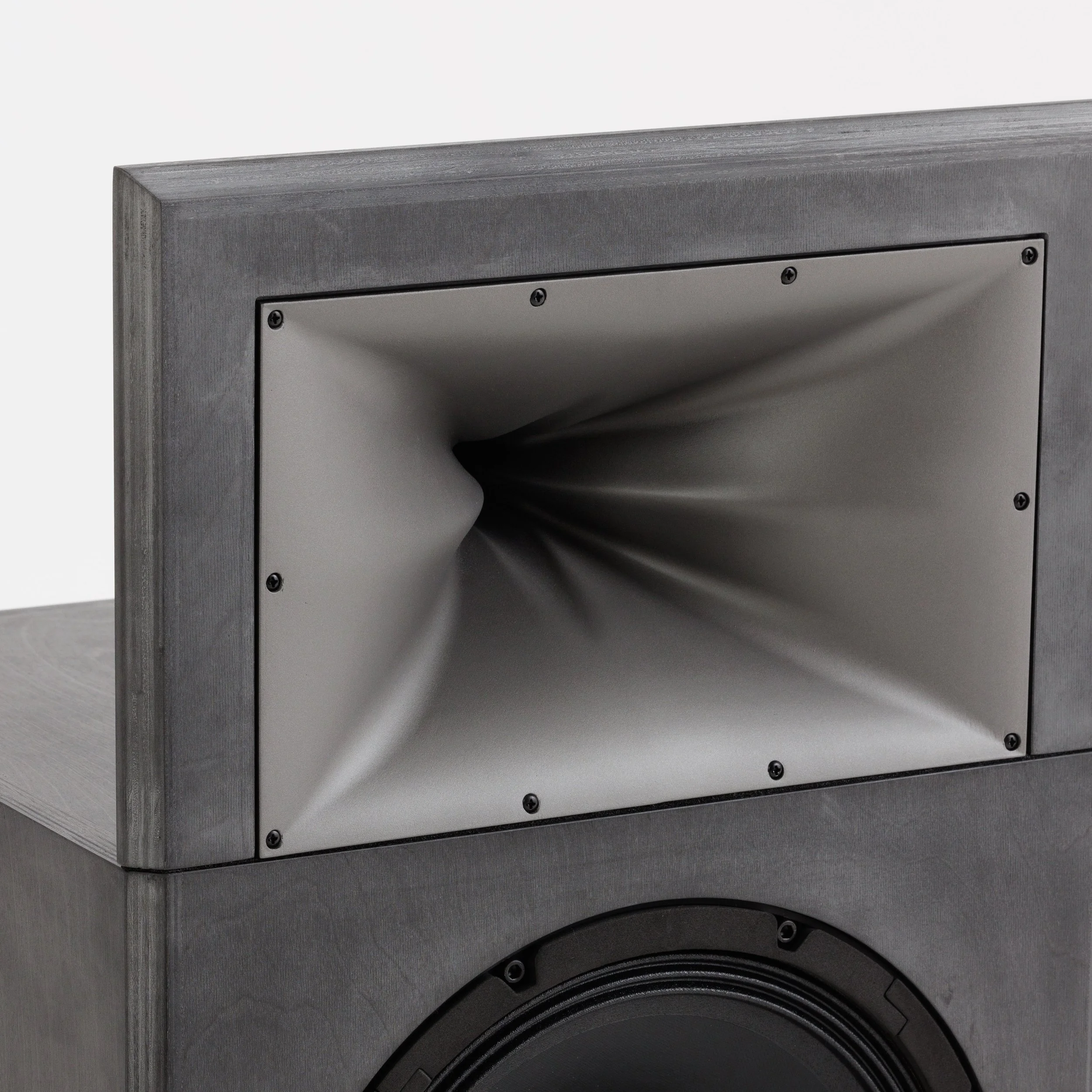

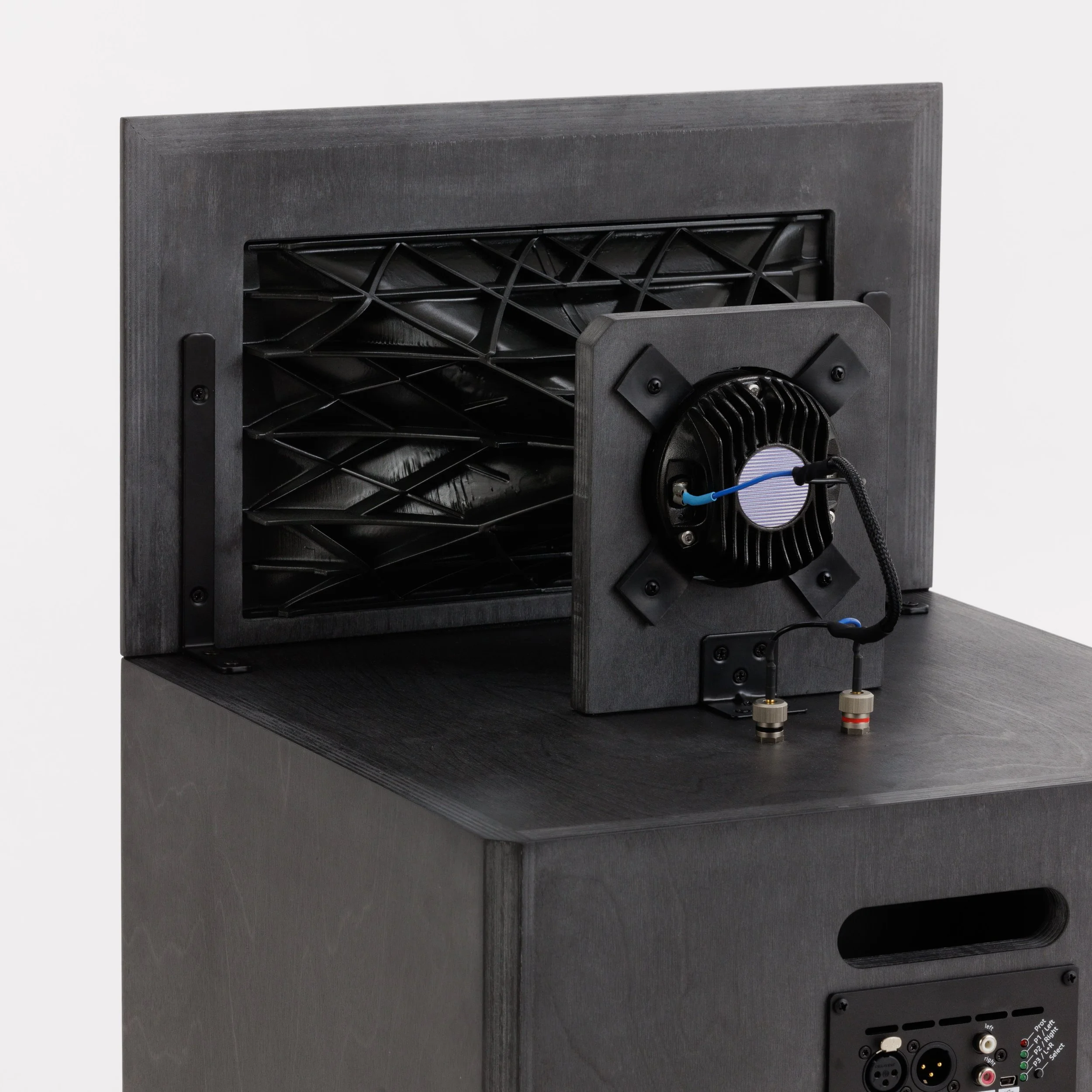

Exposed horn assembly utilizes a very special Audiohorn Inc. X-pattern X33 PLA horn for superior driver integration and 90×60 directivity for even sound dispersion. Horn assembly incorporates a damped coupling to enclosure to reduce vibration from the low driver and press fit reinforced rubber damped high driver cradle.
DSP correction of frequency response has been kept as minimal as possible to preserve natural acoustic response while adhering to strict FR limits.
Specs:

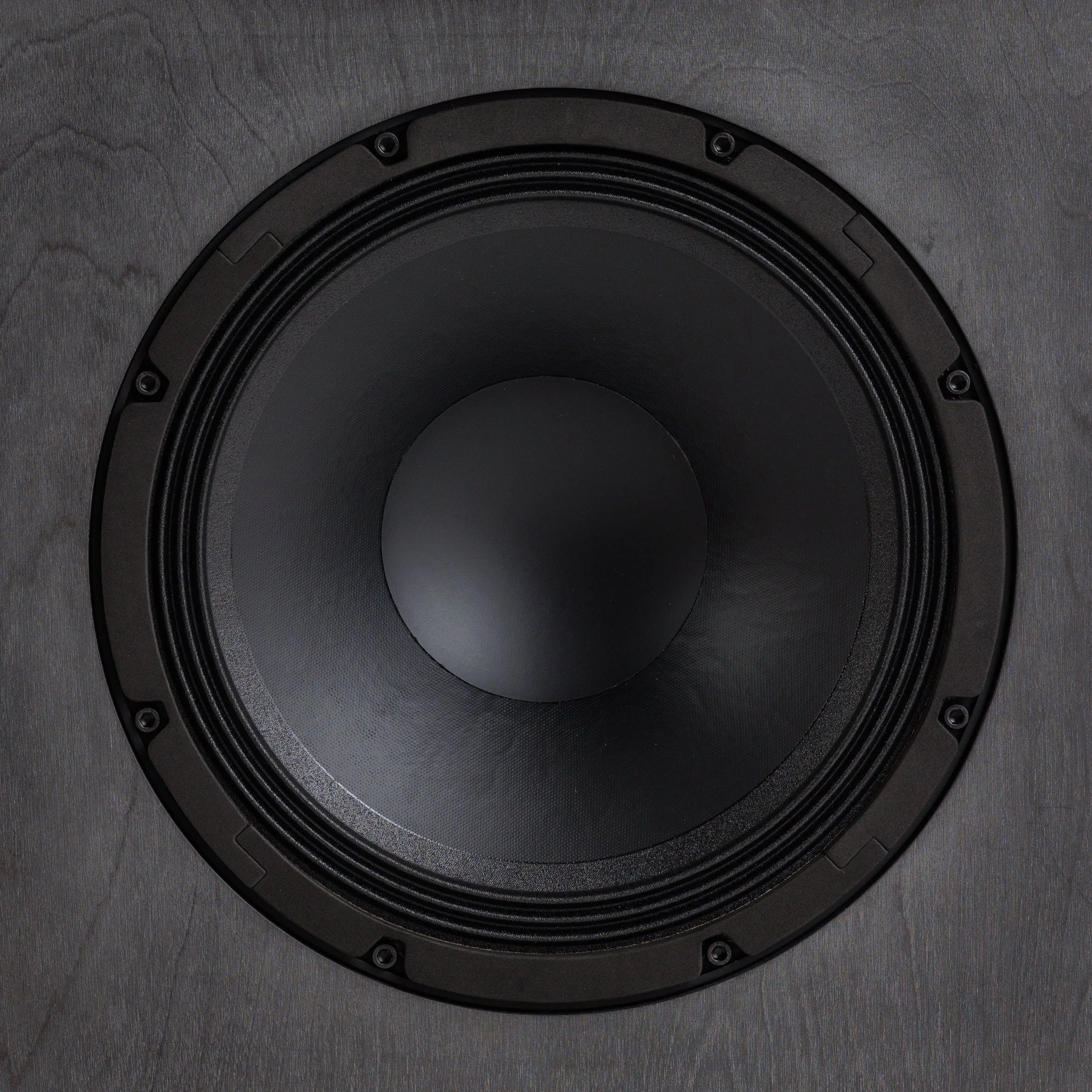

-12” SB Audience accordion surround paper cone neodymium woofer
-1” 18 Sound Titanium dome neodymium compression driver
-Audiohorn Inc. X33 X-pattern waveguide w/ FEA integration frame

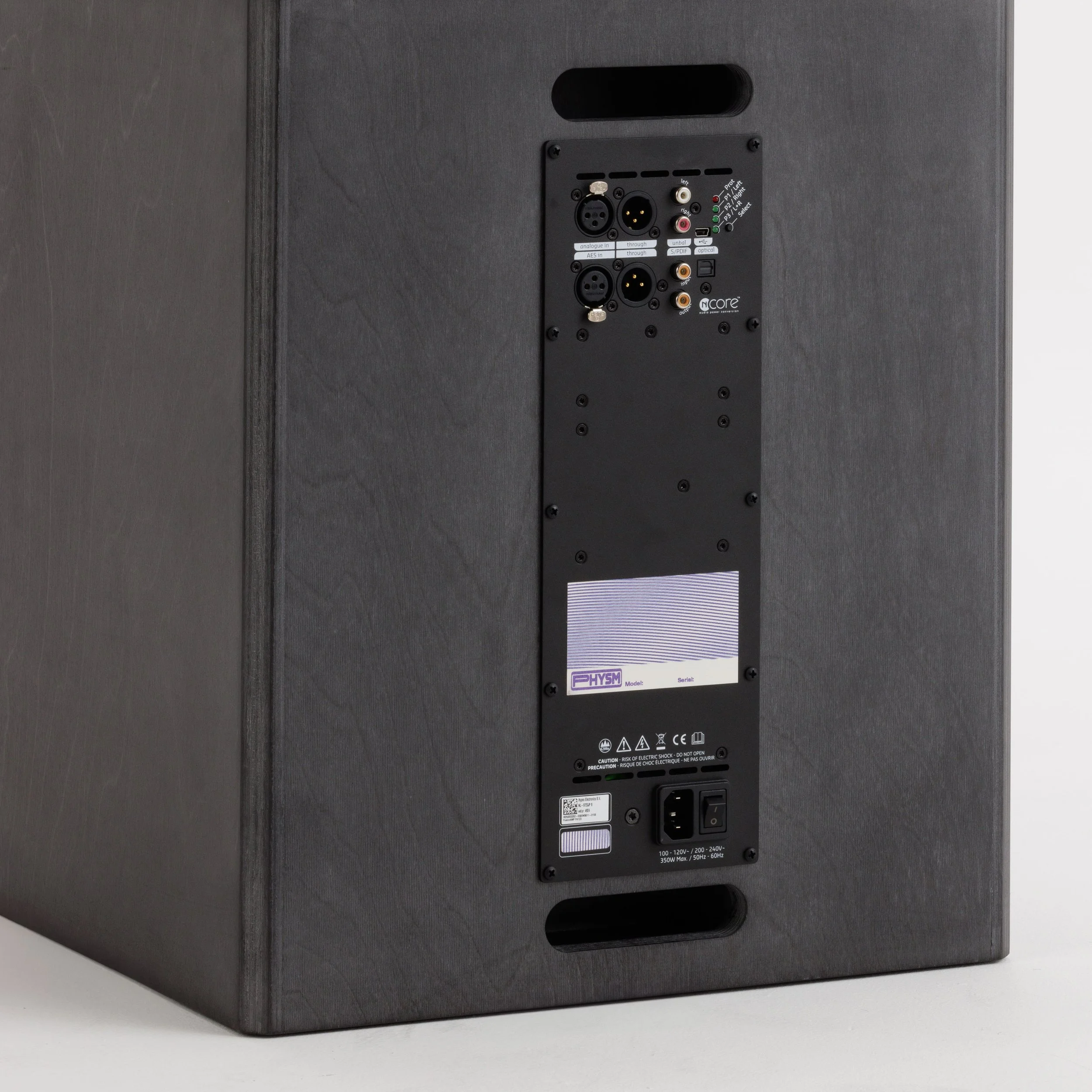

-350 watt Hypex DSP plate amplifier (250watt LD, 100watt HD)
Frequency response: ±3dB 43Hz-20kHz
Horn directivity: 90 degree horizontal, 60 degree vertical
Sensitivity: 98dB at 1 meter
F3: 43Hz
F6: 38Hz
F12: 33Hz
Dimensions: 16.75” W, 16.5” D, 19.6” H (LF Box), 29.5” H (HF Horn)
*The enclosure and design platform was developed to accomodate airflow and heat dissipation for nearly double the stated wattage and we will be offering that as an option in the near future for higher SPL applications.
—-
*The BMF12 displayed here are a custom coloration developed in partnership with Hedge Coffee in the Mission SF, CA as part of a quad point hifi DJ setup designed in collaboration with Symu systems https://www.instagram.com/symu.systems/.
They will be available for viewing on site starting late September 2025. If you visit Hedge in SF, please show your support by buying some amazing coffee and following them on instagram at https://www.instagram.com/hedgecoffee/.
